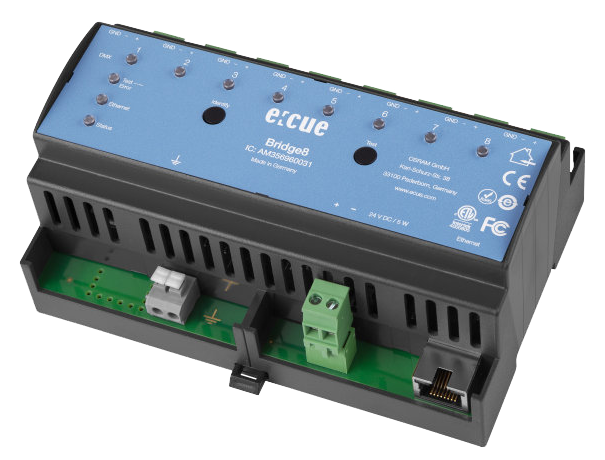

Bridge8
EAN AM356960031
An sACN/Art-Net to DMX512 interface with 8 DMX512 outputs.
- 8 outputs for DMX512
- Switch between two input sources
- Highly isolated outputs
- Supports unicast or multicast mode
- Integrated protection against surge (Level 3)
- Protection against miswiring
- Extended operating temperature -40 … 70 °C*
- Reverse polarity protection
- Power-over-Ethernet
- Test mode access via button
- Web interface for status and configuration
The Bridge8 is an sACN/Art-Net to DMX512 interface with 8 DMX512 outputs for up to 4096 DMX512 channels total. DIN rail mountable and developed for tough outdoor environments, it comes with integrated surge protection and components rated for a very high operating temperature — outputs isolated up to 3.75 kV. The built-in web interface makes all parameters easy to set and manage, and a freely definable DMX value lets you change the sACN/Art-Net source IP to a different device.
| Dimensions (W x H x D) | 143 x 92 x 62 mm (excl. fastening clip) |
| Weight | 250 g |
| Power Supply | 24 … 48 V DC (terminal plug), reverse polarity protection, or PoE IEEE 802.3af |
| Power Consumption | Max. 8 W (incl. DMX termination) |
| Operating Temperature | -40 … 70 °C (70°C max. 1h/day, continuous max. 60°C) |
| Storage Temperature | -40 … 70 °C |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715) or key hole on vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 8 x DMX512, isolated in pairs, surge protection, 3-pin terminal plug |
| Ethernet-Port | 1 x e:net/ethernet 10/100 Mbit/s, RJ-45, surge protection |
